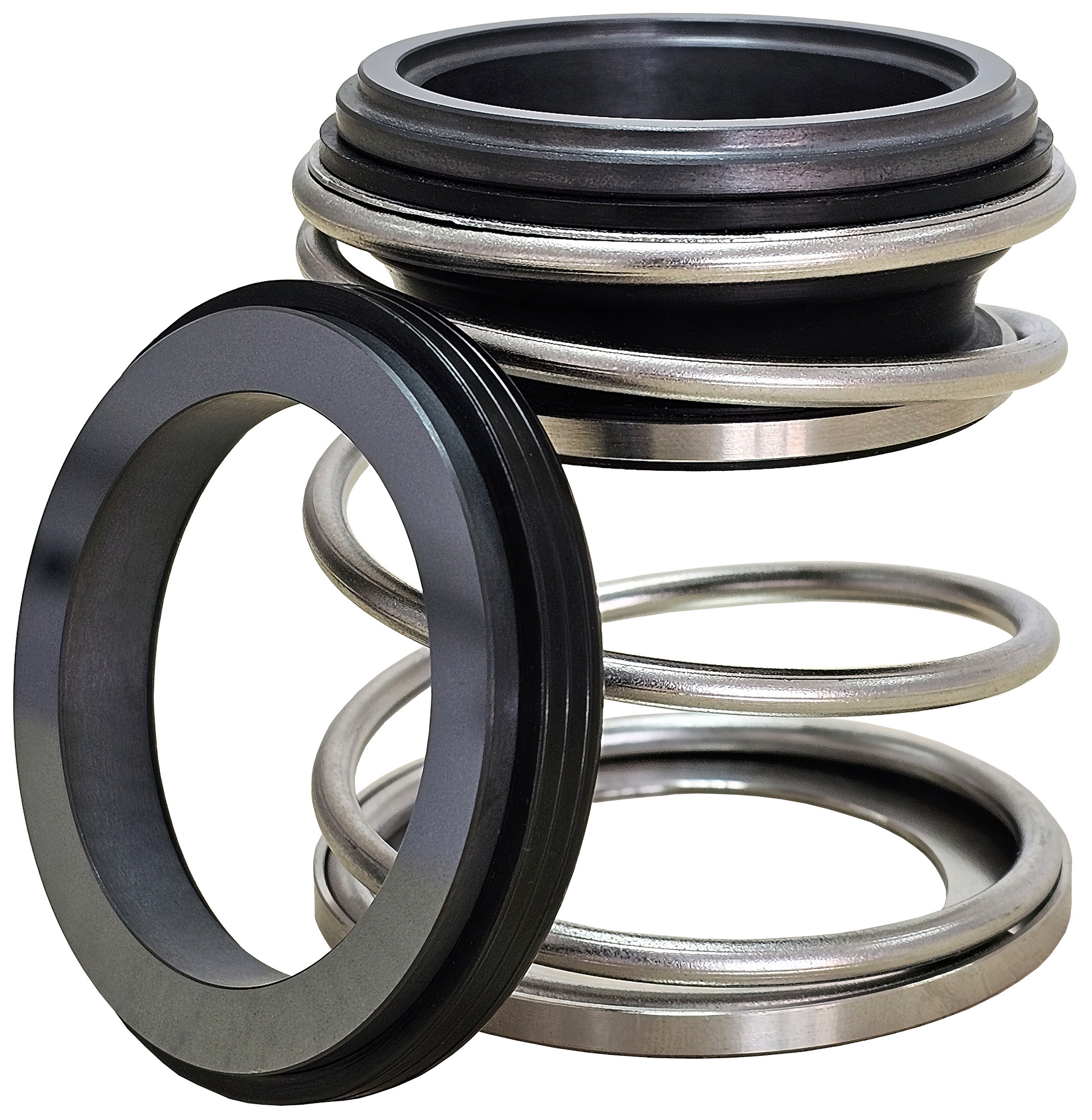

TYPE V2M
APPLICATION
Extremely short rubber bellows with a long compression ratio of the single coil spring compensate for play and differences in working length. The rotary part is extremely flexible and suitable for most applications, and the sole mechanical seal is easily mounted. This makes it suitable for long periods of continuous operation.

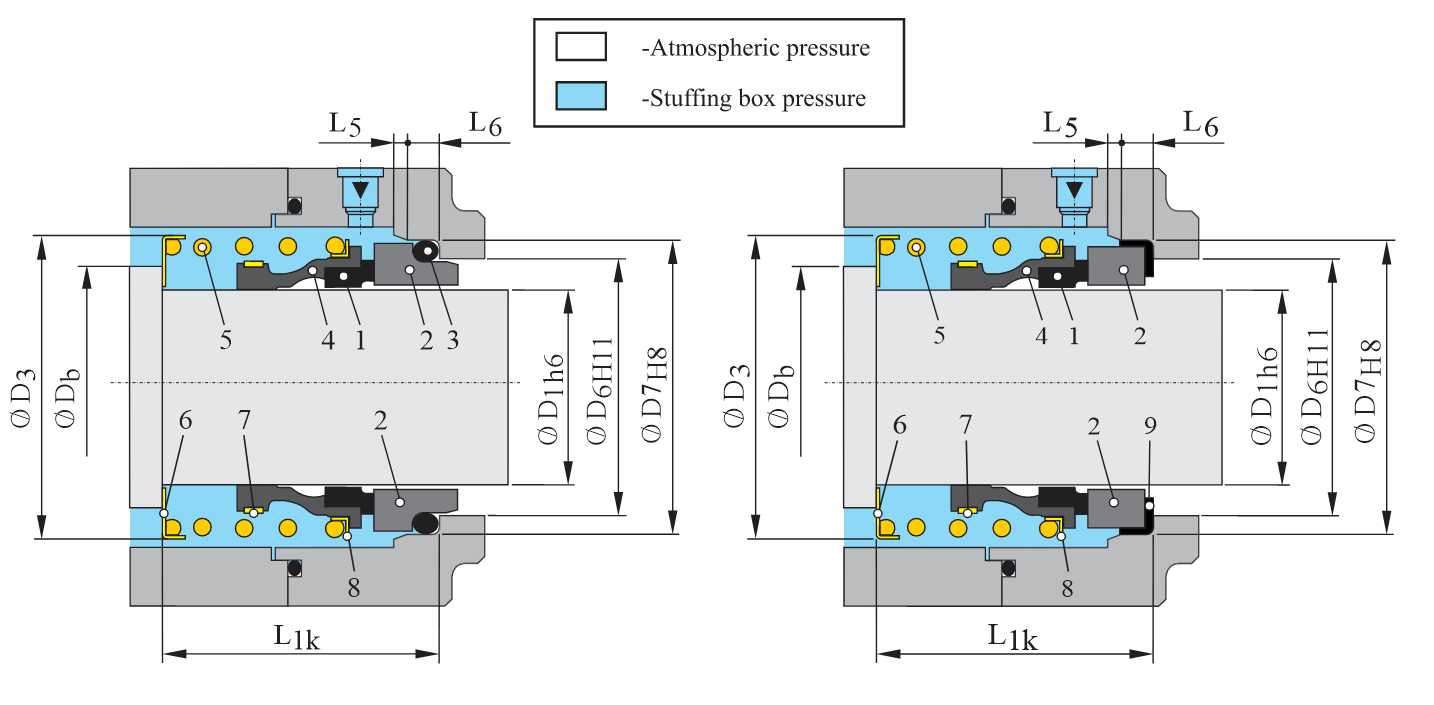

| Item | Description |
| 1. | Rotary seal ring |
| 2. | Stationary seat |
| 3. | Secondary seat |
| 4. | Ruber bellows |
| 5. | Spring |
| 6. | Spring Collar |
| 7. | Ring |
| 8. | Spring collar |
| 9. | Secondary seal |
| LIMITING FACTORS |
| D1= 14… 80 mm |
| p1= 10 bar |
| t= -40°… 204°C |
| Vg= 10 m/s |
| pV= 90 bar m/s |
Features
Elastomer bellow
Unbalanced mechanical seal
Independent of the shaft rotating direction
Long service life
Easy and quick repair
Two robust Tapered Roller bearings
Materials
Seal face: Carbon, SiC
Stationary seal: SiC, TC
Secondary seal: NBR, EPDM, FKM, FEP
Spring: 1.4310 (301)
Metal parts: 1.4301 (304)
Oprtional materials on request
