TYPE VD13
APPLICATION

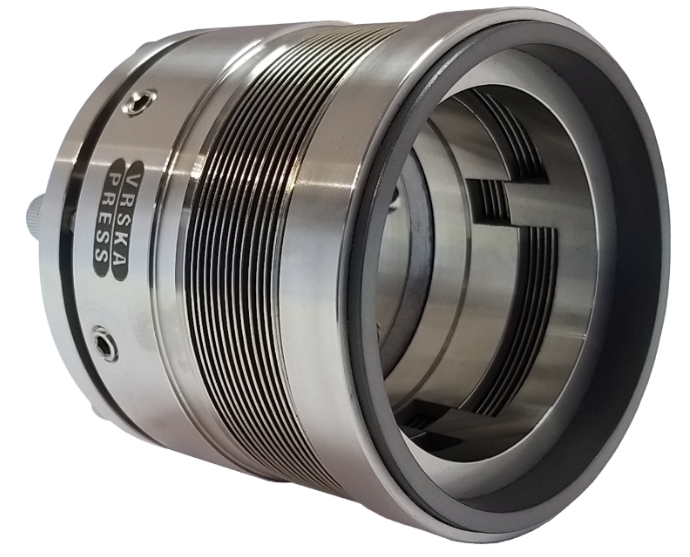

High-performance VD13 metal bellows type.
The VD13 type metal bellows mechanical seal is designed to perform in extremely demanding conditions. It is widely used in the refinery, petrochemical, chemical, paper-making, and pharmaceutical industries, where temperature and fluid viscosity are critical factors. Drive lugs located beneath the metal bellows provide additional rotational drive, reducing torsional stress on the bellows.

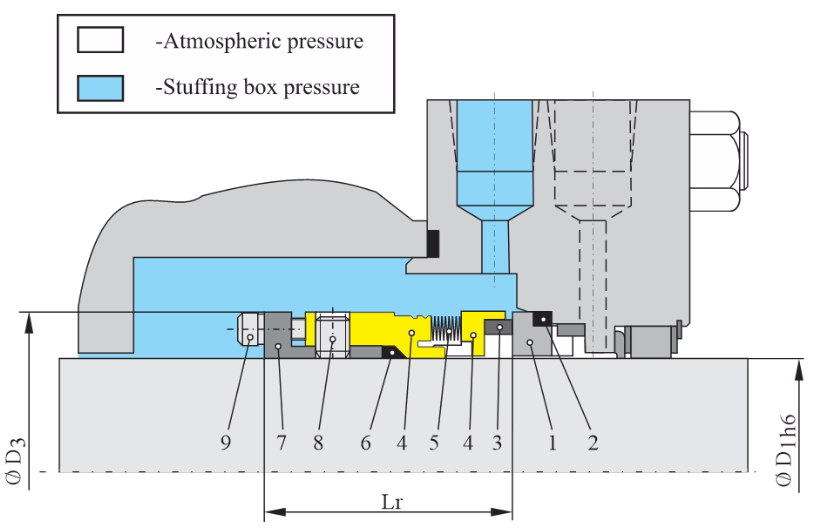

| Item | Description |
| 1. | Stationary seat |
| 2. | Secondary seal |
| 3. | Rotary seal ring |
| 4. | Housing |
| 5. | Metal bellows |
| 6. | Secondary seal |
| 7. | Tightening ring |
| 8. | Fixing screw |
| 9. | Tightening ring |
| LIMITING FACTORS |
| D1= 0,75″… 3,750″ |
| p1= 69 bar |
| t= -75°C to 425°C |
| Vg= 17 m/s |
| pV= 170 bar m/s |
Features
Single mechanical seal
Inner
Metal bellows mechanical seals
Independent of the shaft rotating direction
Materials
Seal face: SiC, TC, Carbon Antimony impregnated
Stationary seat: SiC, TC
Secondary seal: Flexible Carbon
Metal Parts: AM 350, SS 316L, Inconel 718, Hastelloy C, Carpenter 42
Optional materials on request
If you have any questions or concerns about the MECHANICAL SEALS, please feel free to call or send us a message.
