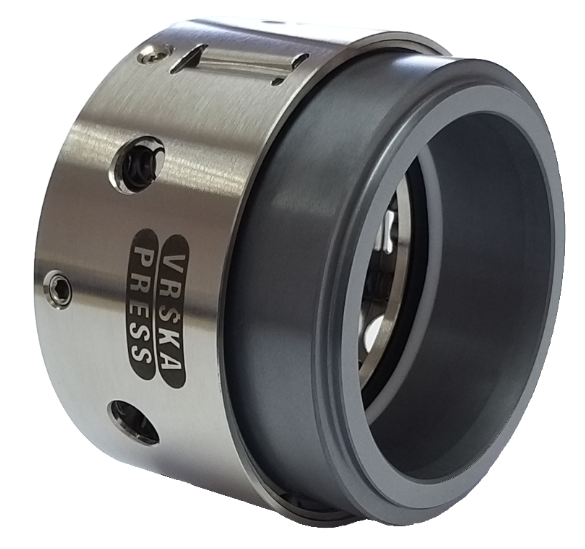

TYPE V5B
APPLICATION
Secondary sealing elements can be made of PTFE or FEP materials to meet specific working and temperature conditions. The standard design is made of acid-resistant steel.

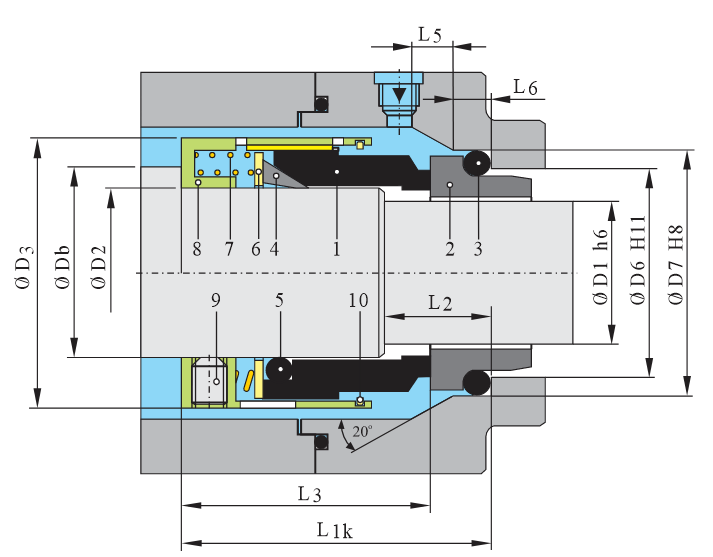

| Item | Description |
| 1. | Rotary seal ring |
| 2. | Stationary seat |
| 3. | O-ring |
| 4. | PTFE wedge |
| 5. | O-ring |
| 6. | Plate |
| 7. | Spring |
| 8. | Housing |
| 9. | Fixing screw |
| LIMITING FACTORS |
| D1= 16… 80 mm |
| p1= 16 (25) bar |
| t= -60°… 230°C |
| Vg= 20 m/s |
| pV= 250 bar m/s |
Features
Balanced mechanical seal
Independent of the shaft rotating direction
Materials
Seal face: SiC, Carbon
Stationary seat: SiC, TC
Secondary seal: NBR, FPM, EPDM, FEP, Aflas
Spring: 1.4310 (304)
Metal Parts: 316L
Optional material on request
