TYPE V14M

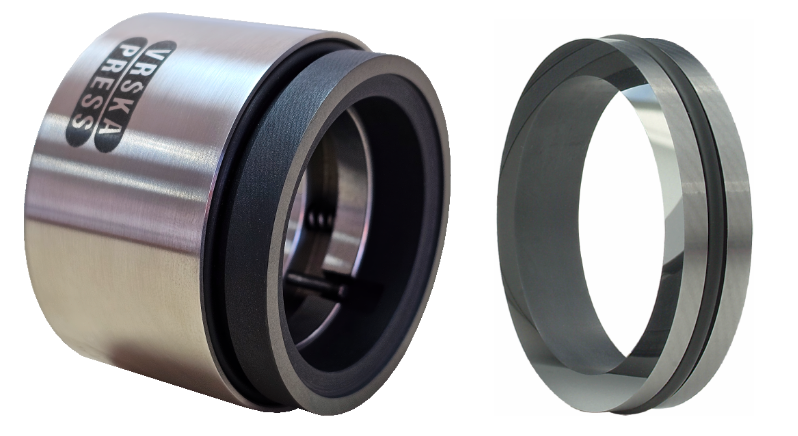

mechanical-seals-europe-serbia-type-v14m-pic-evropa

APPLICATION

mechanical-seals-general mechanical-seals-pulp-and-paper
mechanical-seals-food-industry mechanical-seals-petrochemical
mechanical-seals-pharmaceutical mechanical-seals-sugar-industry
mechanical-seals-fertiliser-serbia-eu- mechanical-seals-water-treatment

Suitable for applications where there is a risk of axial blocking of the mechanical seal due to the influence of sticky, abrasive, and crystallizing particles. The spring is fully protected from fluid exposure by the design, and the elastomers always slide over a clean surface. The heat removal issue is solved by the balanced design of the mechanical seal, which enables reliable operation and long service life in extreme industrial conditions.

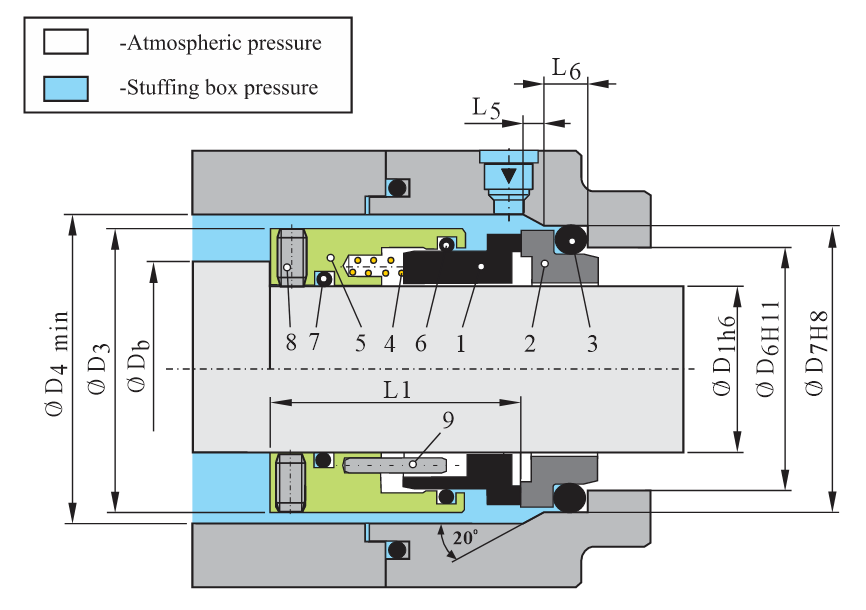

mechanical-seals-europe-serbia-type-v14m-evropa



Item Description
1. Rotary seal ring
2. Stationary seat
3. Secondary seal
4. Spring
5. Housing
6. Secondary seal
7. Secondary seal
8. Fixing screw
9. Pin



LIMITING FACTORS
D1= 25… 80 mm
p1= 25… (40) bar
t= -40°… 204°C
Vg= 20 m/s
pV= 500 bar m/s

Features

Inner mechanical seal
Balanced mechanical seal
Independent of the shaft rotating direction

Materials

Seal face: SiC, Carbon
Stationary seat: SiC, TC
Secondary seal: NBR, FPM, EPDM, FEP, Aflas
Spring: 1.4310 (304)
Metal Parts: 316L
Optional material on request

Full catalogue of v14m mechanical seal
