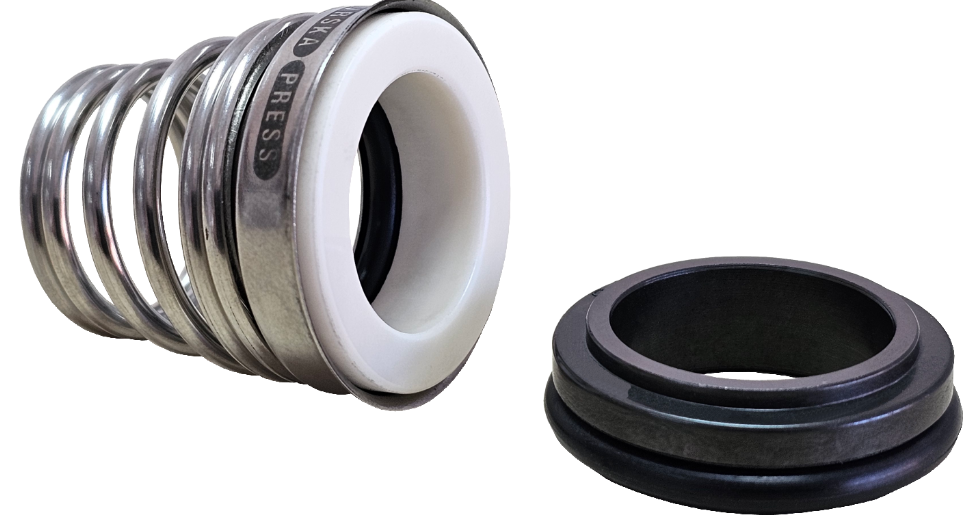

TYPE SIMPLEX
APPLICATION
The mechanical seal, featuring a long compression ratio of the single conical coil spring, compensates for play and variations in working length. The rotary part is highly flexible and suitable for most applications, and the mechanical seal is easy to install.

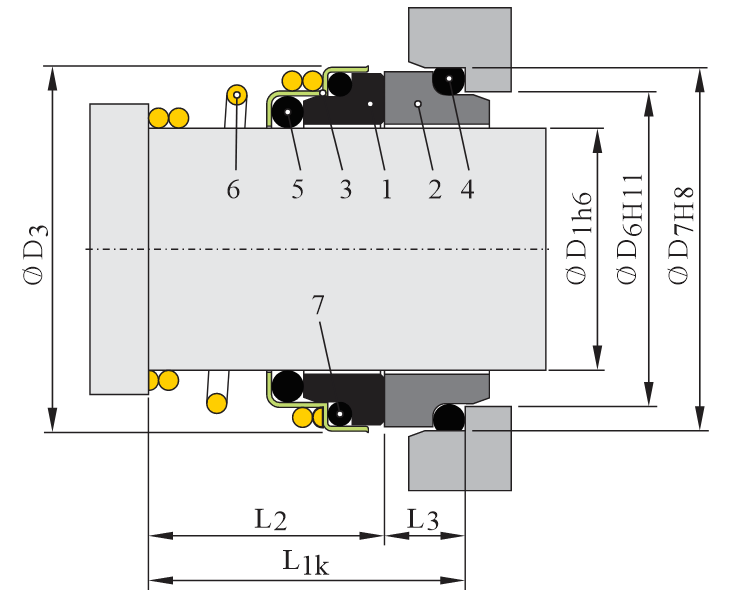

| Item | Description |
| 1. | Rotary seal ring |
| 2. | Stationary seat |
| 3. | Housing |
| 4. | Secondary seal |
| 5. | Secondary seal |
| 6. | Spring |
| 7. | Secondary seal |
| LIMITING FACTORS |
| D1= 10… 35 mm |
| p1= 10 bar |
| t= -30°… 204°C |
| Vg= 20 m/s |
Features
Unbalanced mechanical seal
Easy to install
Independent of the shaft rotating direction
Materials
Seal face: SiC, Carbon
Stationary seat: SiC, TC
Secondary seal: NBR, FPM, EPDM, FEP, Aflas
Spring: 1.4310 (304)
Metal Parts: 316L
Optional material on request
