Cartseal P
APPLICATION

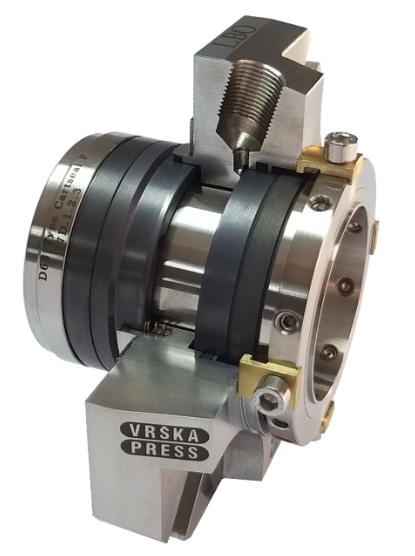

Cartseal P is a redesigned and improved version of the Cartseal, specially engineered to meet the demanding requirements of the petrochemical industry. It is a balanced, O-ring pusher-type cartridge mechanical seal available in both single and double versions.
Fully pre-assembled for ease of installation, Cartseal P retains the key design features of the original Cartseal, such as easy replacement of seal faces and straightforward maintenance.

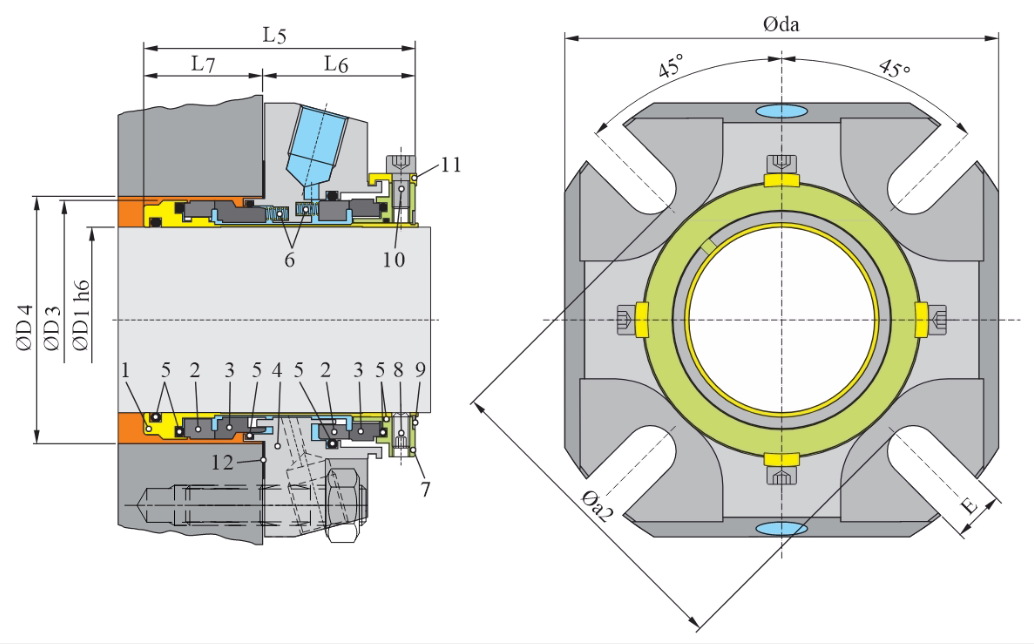

| Item | Description |
| 1. | Shaft sleeve |
| 2. | Seat |
| 3. | Seal face |
| 4. | Housing |
| 5. | O-ring |
| 6. | Spring |
| 7. | Drive collar |
| 8. | Set screw |
| 9. | Snap ring |
| 10. | Screw |
| 11. | Assembly fixture |
| 12. | Gasket |
| LIMITING FACTORS |
| D1= 25… 80 mm |
| p1= 25 (40) bar |
| t= + 260°C |
| Vg= 20 m/s |
Features
Improved design
Easy to install cartridge design
Fully pre-assembled
Balanced
Independent of the shaft rotating direction
Materials
Seal face: SiC, Carbon antimony impregnated
Stationary seat: SiC, TC
Secondary seal: EPDM, FKM, FFKM, FEP, Aflas
Spring: Hastelloy C
Metal Parts: 316L, Hastelloy C4
Optional material on request
