Single Cartridge VN10 Type B

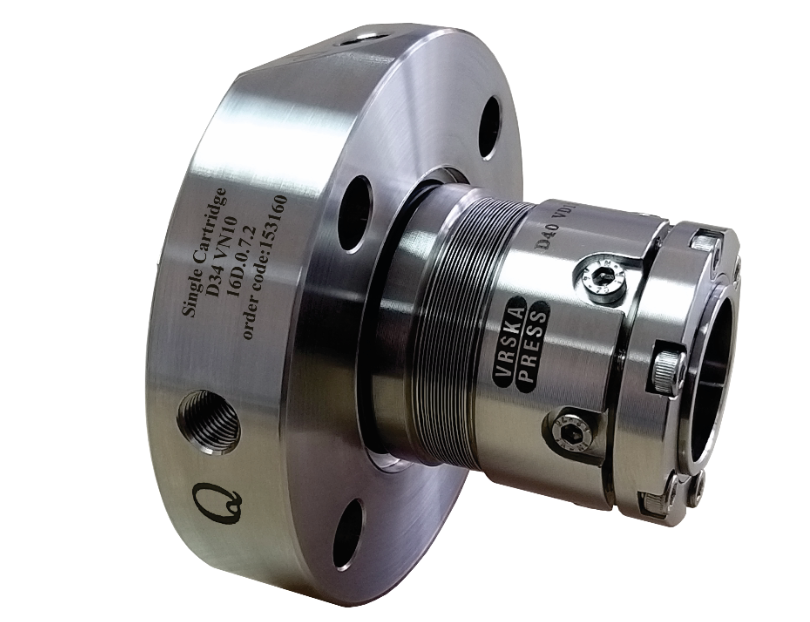

mechanical-seals-europe-serbia-cartridge-cartseal-vn10-fp

APPLICATION

mechanical-seals-petrochemical mechanical-seals-oil-industry
mechanical-seals-chemical

API 682 Category 2 & 3, Type B, Arrangement 1 Single-cartridge metal bellows seal with a floating, segmented, or fixed bushing, independent of shaft rotation direction.

Features

API 682 Type B, Arrangement 1
Easy-to-install single cartridge design
Balanced mechanical seal
Multiple springs
Independent of shaft rotating direction
Floating or segmented spring-loaded carbon throttle bushing
Integrated pumping ring available
Optional pumping ring
Elastomers free

Materials

Seal face: Carbon antimony impregnated, SiC, TC
Stationary seat: SiC, TC
Secondary seal: Flexible Graphite
Metal Parts: 316L, Alloy 718, Carpenter 42
Optional materials on request

Full catalogue of Single Cartridge VN10 Type B
