Double Cartridge seal type v5b 17d

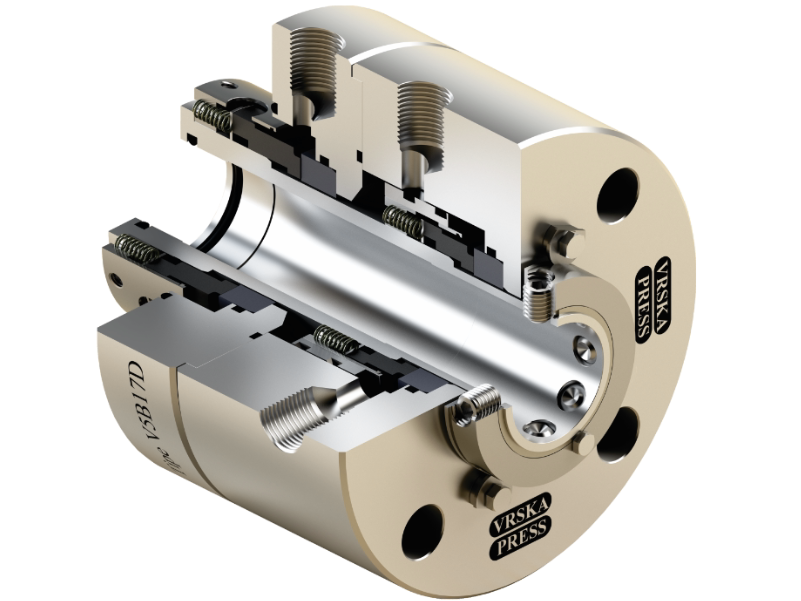

mechanical-seals-europe-serbia-type-cartseal-v5b-17d-pic

APPLICATION

mechanical-seals-petrochemical mechanical-seals-oil-industry
mechanical-seals-chemical mechanical-seals-power-industry-europe-serbia

API 682 Category 2 & 3, Type A, Arrangement 2 or 3 Type V5B 17D is a reliable, high-performance, balanced double cartridge pusher-type tandem seal, independent of shaft rotation direction. It is designed to seal hazardous fluids in applications where the sealing environment must be strictly controlled. Commonly used in processes involving volatile organic compounds, hydrocarbons, benzene, toluene, solvents, fuel oil, gasoline, chemicals, and caustics.

Features

API 682 Category 2 & 3, Type A, Arrangement 2 or3
Easy-to-install double cartridge design
Balanced
Multiple springs
Independent of shaft rotating direction
Integrated pumping ring available
Extended selection of materials

Materials

Seal face: Carbon antimony impregnated, SiC
Stationary seat: SiC, TC
Secondary seal: NBR, EPDM, FKM, FFKM
Spring: 1.4571 (316Ti) Hastelloy C
Metal Parts: 1.4004(316L)
Optional materials on request

Full catalogue of Double cartridge Type V5B 17D
