Single Cartridge seal type v5b 16d

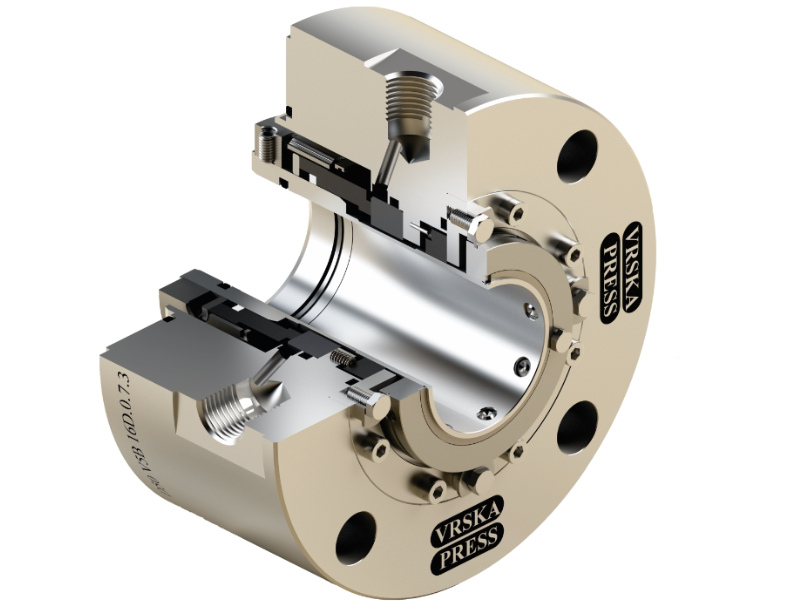

mechanical-seals-europe-serbia-type-cartseal-v5b-16d-pic

APPLICATION

mechanical-seals-petrochemical mechanical-seals-oil-industry
mechanical-seals-chemical mechanical-seals-power-industry-europe-serbia

API 682 Category 2 & 3, Type A, Arrangement 1 Type V5B 16D is a reliable, high-performance, balanced single cartridge pusher-type seal with a floating or segmented throttle bushing, independent of shaft rotation direction. It is designed to seal fluids in a wide range of refinery applications, including crude oil products, aromatic fractionation products, and chemicals.

Features

API 682 Category 2 & 3, Type A, Arrangement 1
Easy-to-install single cartridge design
Balanced
Multiple springs
Independent of shaft rotating direction
Floating or segmented spring-loaded carbon throttle bushing
Integrated pumping ring available

Materials

Seal face: Carbon antimony impregnated, SiC
Stationary seat: SiC, TC
Secondary seal: NBR, EPDM, FKM, FFKM
Spring: 1.4571 (316Ti) Hastelloy C
Metal Parts: 1.4004(316L) C
Optional materials on request

Full catalogue of Single Cartridge Type V5B 16D
